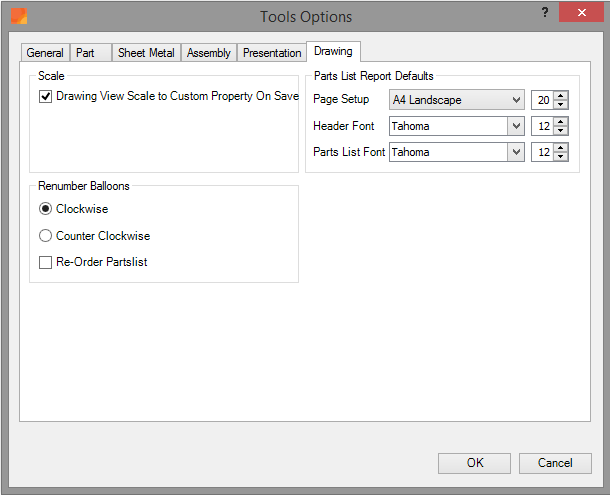

If this option is enabled, the scale of the first view (Base View) in the 2D drawing is saved to a custom iProperty 'Scale', when saving the document. The titleblock can now automatically be filled with the scale . This requires the adaptation of the titleblock in the Inventor Drawing templates, in which the iProperty 'Scale' needs to be referenced.
Sets the settings for the ‘Parts List Report’ command.
Page Setup |
Set the paper size for the Parts List Report. You can choose from landscape and portrait A2, A3, A4, paper sizes. In addition, you may specify the margins, which are identical for left, right, top and bottom. |
Header Font |
Choose the font and font size for the Parts List Report header |
Parts List Font |
Choose the font and font size for the Parts List table |
Set preferences for the ‘Renumber Balloons’ command.
Clockwise / Counter Clockwise |
Sets the order of renumbering: clockwise or counter clockwise. |
Re-Order Partslist
|
Sets if the parts list will be sorted, in case a Parts List is present on the 2D drawing. |
