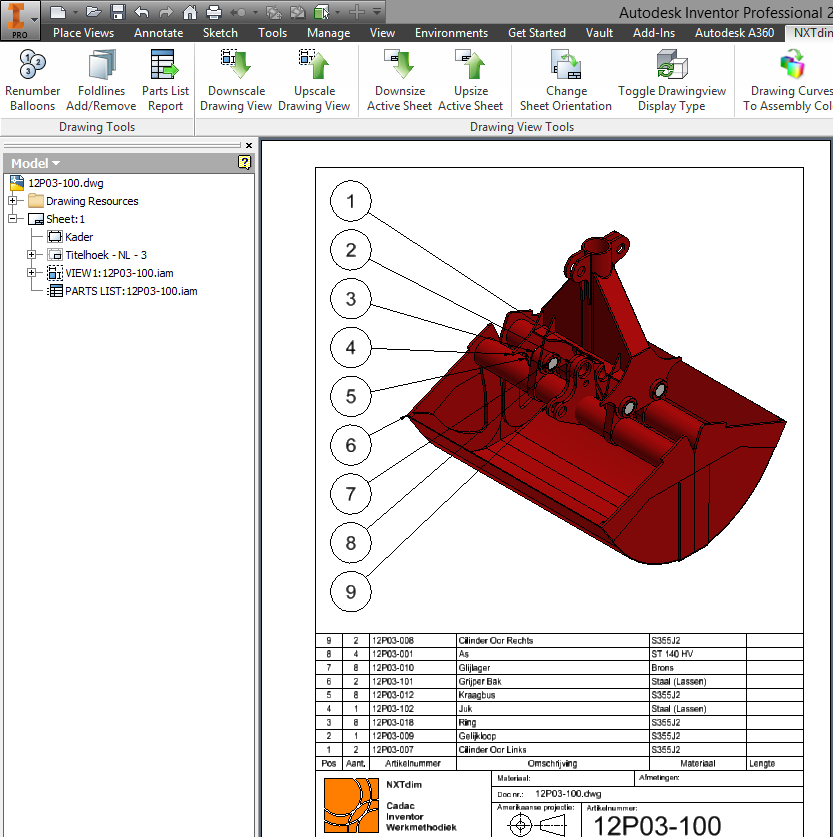

2D drawing for renumbering
2D drawing after renumbering counter-clockwise and sorting the parts list.
The ‘Renumber Balloons’ command allows to renumber ‘Balloons’ in a specific view. The renumbering may both be clockwise or counter-clockwise. You may optionally sort the parts list (if present) according to the numberingscheme. Both options can be set on the Drawing tab of the Tools Options.
After starting the command, you will be prompted to select an existing ‘Balloon’ in one of the views as starting point. This balloon will be numbered 1.
Example
2D drawing for renumbering
2D drawing after renumbering counter-clockwise and sorting the parts list.
